1.1: General Product Description

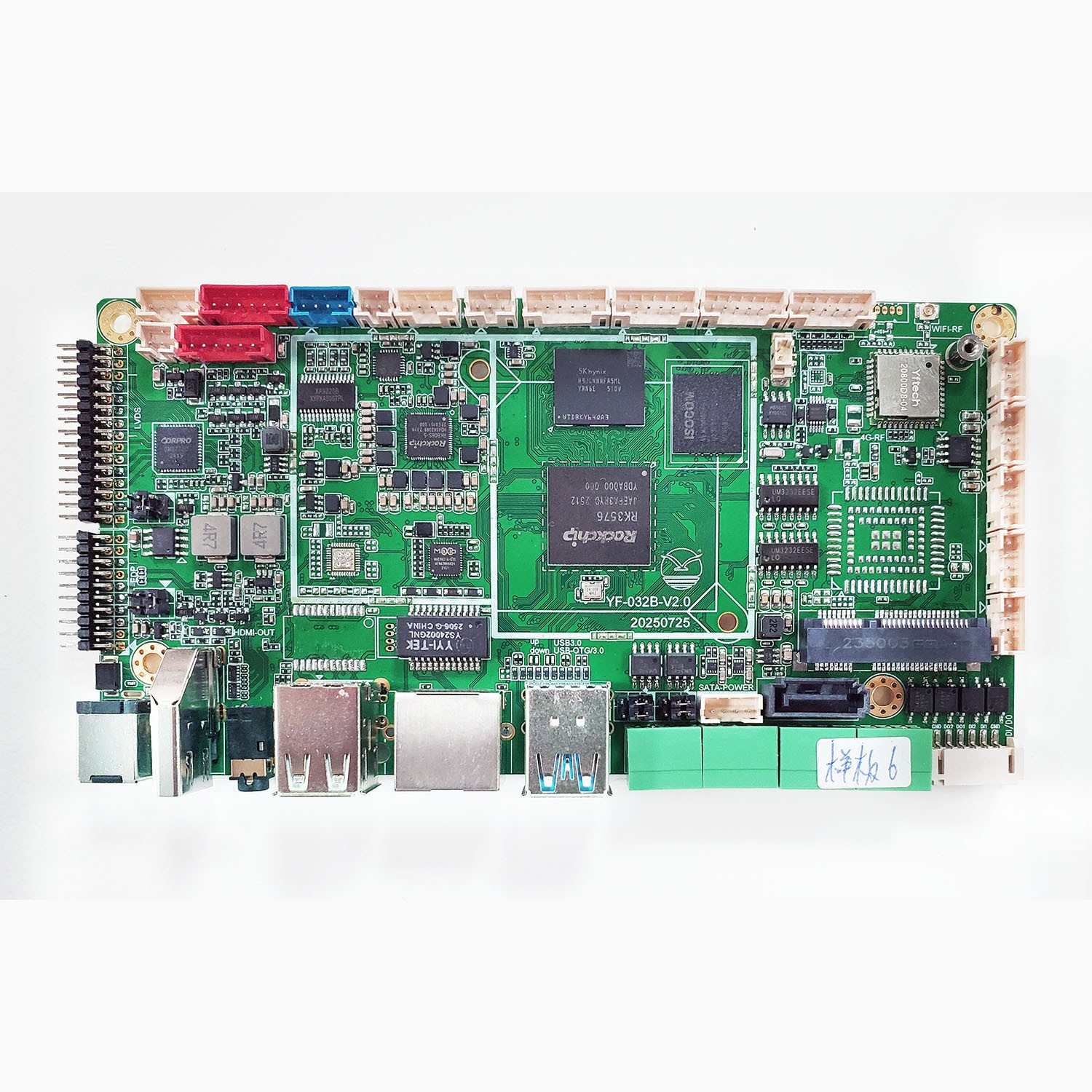

The YF-032B-V1.0 board features the Rockchip RK3576 octa-core 64-bit processor with a big-small core architecture (4xA72 + 4xA53), clocked at up to 2.2GHz, and runs Android 14.0. It also includes a built-in 6TOPS AI accelerator NPU that supports mixed operations such as INT4, INT8, and INT16, and 4K 60fps decoding. It integrates multiple LCD drivers with MIPI, LVDS, and eDP, dual Gigabit Ethernet, HDMI-out, Wi-Fi, and a BT5.4 amplifier, supporting decoding of most popular video and image formats.
1.2： It supports a wide range of applications.
Computer vision: It can be used for tasks such as image recognition, object detection, and face recognition. In security surveillance, it can quickly and accurately identify people, vehicles, and other targets. In autonomous driving, it can perceive and analyze the road environment in real time. In medical imaging analysis, it can help doctors more accurately diagnose diseases.
Natural language processing: It can accelerate tasks such as text classification, sentiment analysis, and machine translation, significantly improving the efficiency of processing large amounts of text data.
1.3： Key Features：
◆ Highly integrated： Integrates EDP/HDMI-out/USB/Gigabit Ethernet/Wi-Fi/BT5.4/microphone, simplifying the overall design and enhancing its aesthetics.
◆ High-definition： 4K60fps video decoding and various MIPI/LVDS/eDP/HDMI and LCD displays.
◆ Built-in amplifier. Supports dual-channel 8R/5W amplifiers.
◆ Rich interface support： including USB/serial/GPIO/ADC expansion, to accommodate mainstream peripherals.
◆ Comprehensive functionality： Supports landscape and portrait playback, split-screen video, scrolling subtitles, timer, USB data import, and more.
◆ Convenient management: User-friendly playlist creation software facilitates ad playback management and control. Playback logs provide easy access to playback status.
Part 2

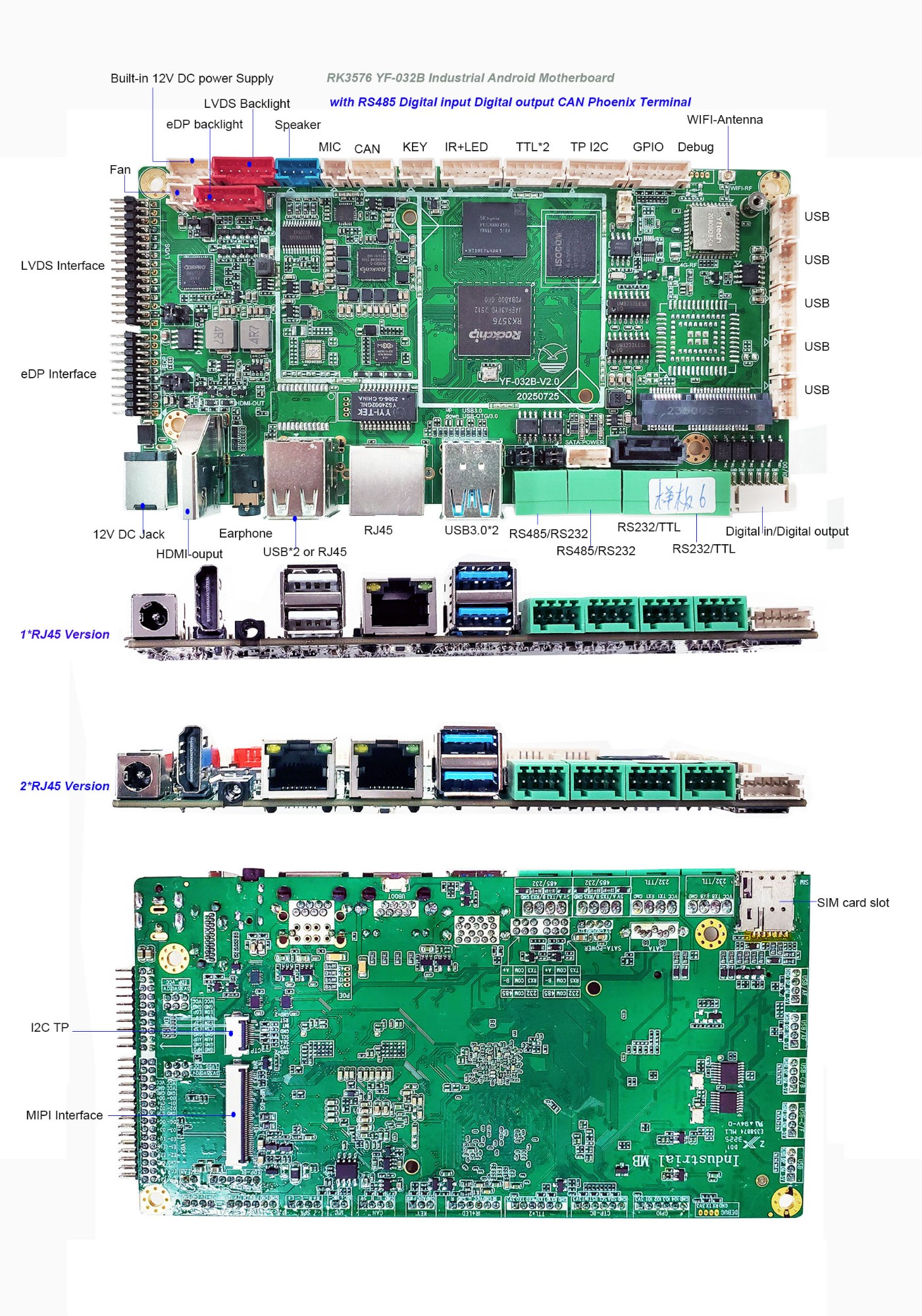

Hardware Specification | |
CPU | Rockchip RK3576 UP to 2.2GHz； |
GPU | ARM Mali-G52 MC3 GPU |
NPU | 6T |
RAM | Standard 4GB LPDDR4/4X (Optional: 8GB 16GB ) |
ROM | EMMC32G/64/128/256G(optional)label 64GB |
Decoding resolution | 4K@120fps H.265/H.264/AV1/VP9/AVS2 decoding and 4K@30fps H.264/H.265 encoding |
O.S | Android14.0/Debian12 |
Play Mode | Supports multiple playback modes such as loop, timing, and insert playback |
Network | Gigabit Ethernet, support WiFi/BT5.0, wireless peripheral expansion |
Built-in USB2.0 | 5 built-in USB |
4G Module | PCIE module/CAT1 built-in |
External USB | 2 standard double-layer USB ports (USB3.0, USB2.0 and Ethernet, one of which is Optional ). |
HDMI output | UP to 3840*2160@ 60Hz |
Ethernet | 1, 100/1000M Ethernet |
HDMI-IN | UP to 3840*2160 |
MIPI -DSI | UP to 4K (3840×2160) @ 60Hz |
LVDS | UP to 1920*1080 |
eDP | UP to 3840*2160@60HZ |
Audio output | Left and right channel output 8R/5W speakers | ||
RTC | Support | ||
Hardware watch-dog | Support | ||
Timer switch | Support | ||
DI/DO | |||
Serial Port | 1 CAN, 2 RS485/RS232 (optional), 2 RS232 (optional TTL), 2 TTL, 1 Debug, |
