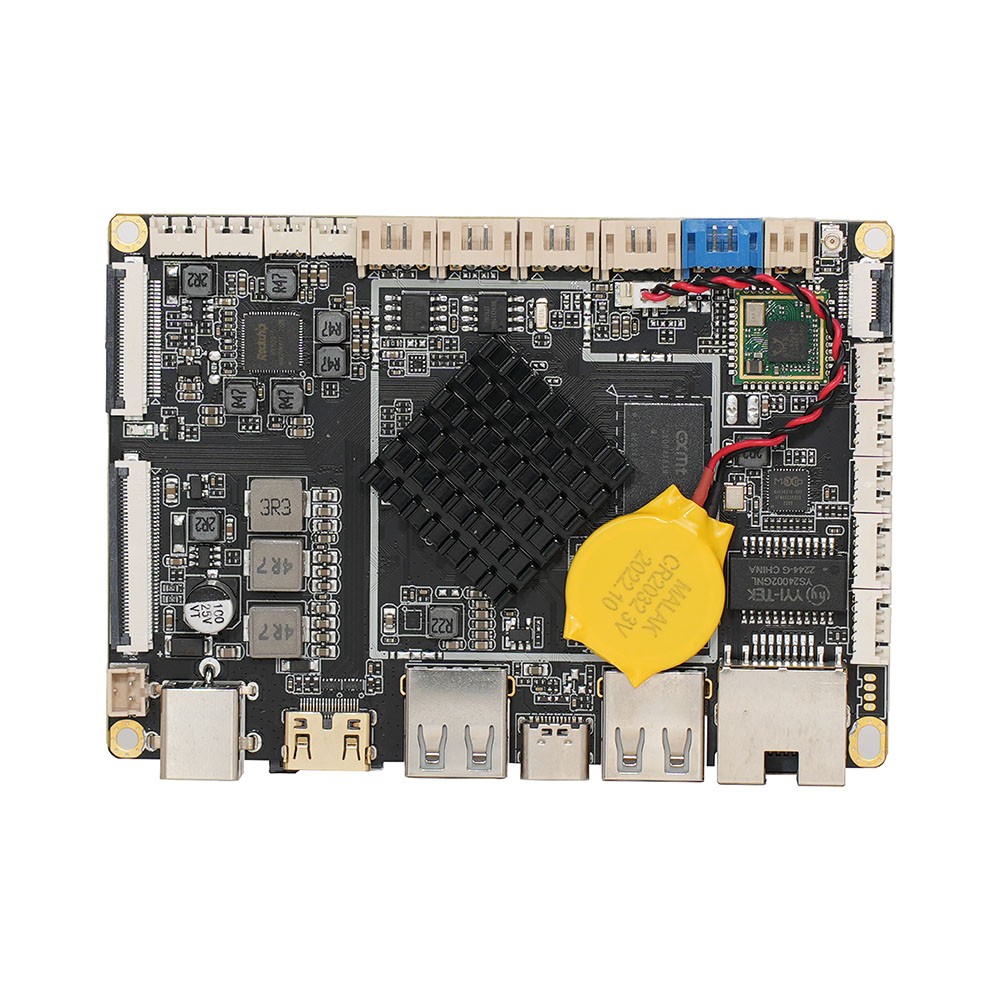

YF-011E

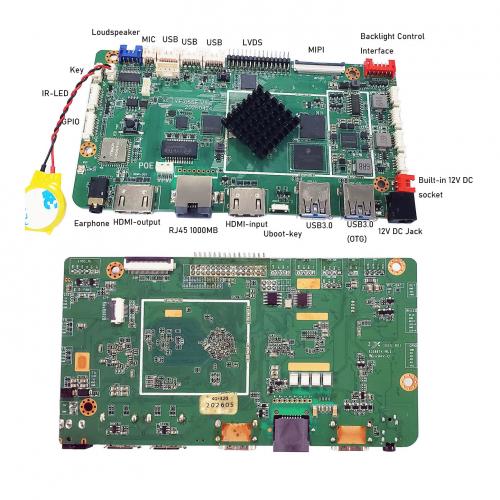

Main Interface:

-        LVDS output  x 1 (up to 1920*1080)

-        eDP output  x 1 (up to 1920*1080)

-        Mipi output x 1 (up to 1920*1080)

-        HDMI output x 1 (up to 3840*2160)

-        USB3.0 x 1 ( for data input and output)

-        USB OTG x 1  (image updating through OTG, )

-        USB2.0 built-in x 4 way

-        TF card Slot

-        TTLYS3 (for TTL)

-        TTLYS4 (for TTL)

-        TTLYS5 (for RS232)

-        TTLSY7 (for TTL)

-        GPIO x 4

-        I2C (on back of the board, for I2C TP)

-        POE function (optional)

-        RJ45 (up to 1000M)

-        Power Jack (12V DC power supply)

-        Built-in power interface

-        Backlight control interface

Remark: USB functiron: for data input /output, Touch panel, USB camera, USB NFC, USB 4G/5G module

Overview

-        CPU: RK3568 4-core processor, high performance, low power consumption

-        Operating system: Android13.0 system,

-        Main frequency: Up to 2.0GHz.

-        Embedded 3D GPU, RK3568 is fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1.

-        The special 2D hardware engine maximizes display performance and provides very smooth operation.

-        The built-in NPU supports 1.0T computing power, supports full-format H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, supports H.264/H.265 encoder 1080p@60fps, and high-quality JPEG encoding  converter/decoder.  .

-        Integrated LVDS eDP Mipi LCD driver

-        Ethernet, WIFI and BT power amplifier integrated into one,

-        Supports decoding of most currently popular video and picture formats, dual 6/8-bit LVDS, eDP /MIPI, supports 2K-level output and is compatible with driving various TFT LCD displays, simplifying the overall system design.

Key Features

- High integration level: Integrated USB/eDP/Gigabit Ethernet/dual-band  WIFI/BT/eDP/TF card expansion/microphone and other functions simplify the overall  machine design and make the overall machine design more beautiful.

- High definition: Supports 1080P/H.265 (4K2K) video decoding and various  Edp/MIPI*2 signal LCD displays.

- Comes with built-in power amplifier: Supports dual-channel 8R/3W power amplifier.

- Rich interfaces:Supports USB/serial/GPIO/ADC interface expansion and can  meet mainstream peripherals on the market.

- Full-featured: Supports horizontal and vertical screen playback, video split-screen,  rolling subtitles, timer switch, USB data import and other functions.

- Convenient management: Humanized playlist creation software facilitates  advertising playback management and control. Playback log makes it easy to  understand the playback status.

-Three-screen differential display function MIPI*2/EDP

-Suitable for scenes: hospitals/conference rooms/government signs

Young-feel android motherboard PCBA solutions are widely used in self-service equipment (medical terminal equipment, tax terminal equipment, self-service vending machines, etc.), smart cash register equipment, face recognition equipment, education all-in-one machine, live broadcast equipment, etc., and have leading customers in various equipment fields.
