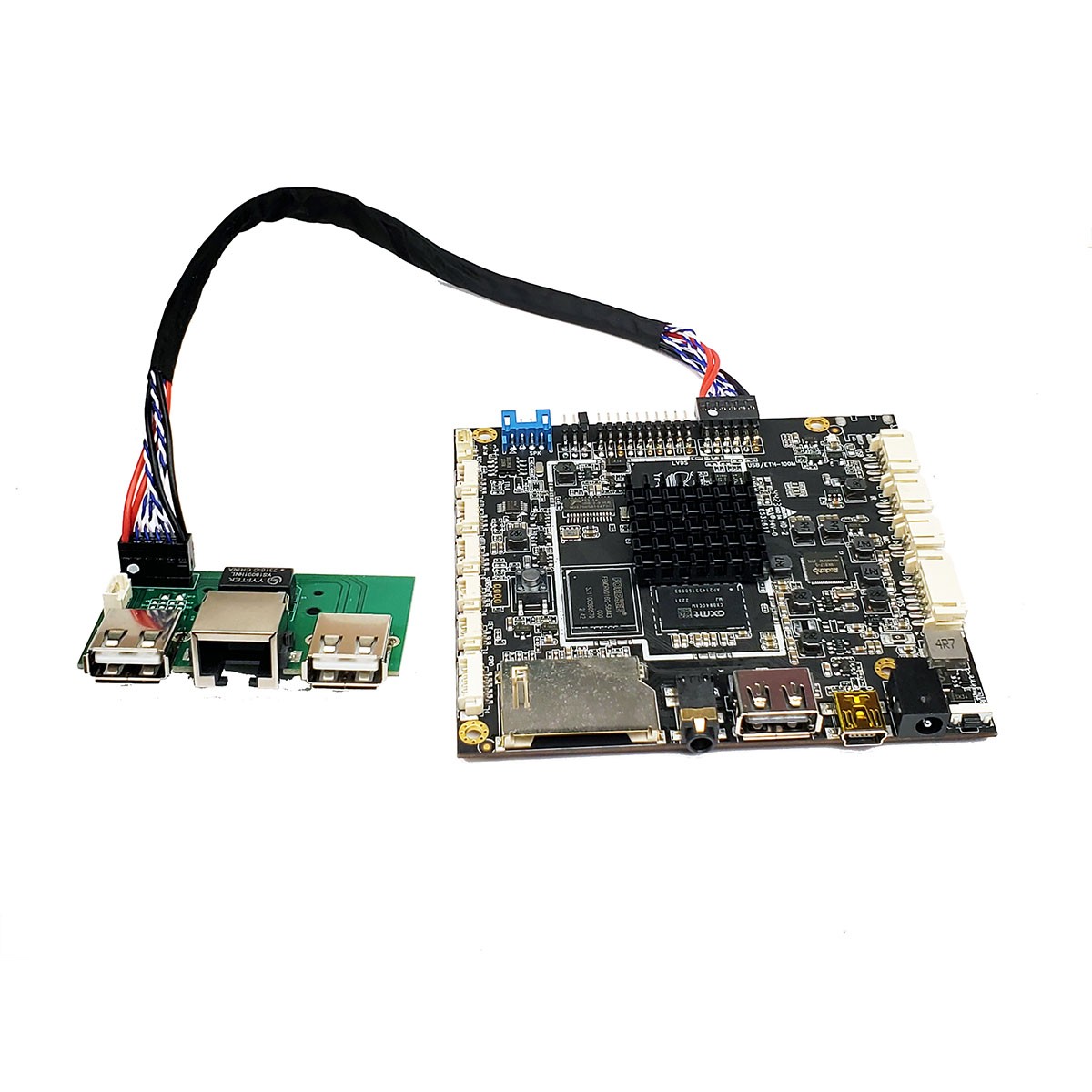

Main Interface:
- LVDS output x 1 (up to 1920*1080)
- Panel Voltage jumper
- Extension interface for RJ45 and USB board
- IR
- USB3.0 x 1 ( for data input and output)
- MIC
- LVDS Backlight Inverter Interface
- U-boot Key
- Power Jack (12V DC power supply)
- USB-OTG
- USB-Host
- Earphone Jack
- TF-card Slot
- GPIO
- KEY
- Sensor
- TLL x 3
- Speaker
- Battery
Remark: USB functiron: for data input /output, Touch panel, USB camera, USB NFC, USB 4G/5G module
Overview
- CPU: RK3562 4-core processor, high performance, low power consumption
- Operating system: Android13.0 system,
- Main frequency: Up to 2.0GHz.
- Embedded 3D GPU, RK3562 is fully compatible with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1.
- The special 2D hardware engine maximizes display performance and provides very smooth operation.
- The built-in NPU supports 1.0T computing power, supports full-format H.264 decoder 4K@60fps, H.265 decoder 4K@60fps, supports H.264/H.265 encoder 1080p@60fps, and high-quality JPEG encoding converter/decoder. .
- Integrated multiple LCD driver
- WIFI, BT, and power amplifier into one
- Support decoding of most popular video and picture formats, support MIPI interface display, simplifying the overall system design.
Key Features
- High integration level: Integrated USB/WIFI/BT/MIPI/LVDS serial port/microphone and other functions simplifies the overall machine design and makes the overall machine design more beautiful.
- High definition: Supports 1080P/H.265 (2K) video decoding and various MIPI Signal LCD displays.
- Comes with built-in power amplifier: Supports dual-channel 8R/2W power amplifier.
- Supports single-cell 3.7V battery power supply, maximum charging current 2A.
- Rich interfaces: Supports USB/serial port/GPIO/ADC interface expansion, which can meet the mainstream peripherals on the market.
- Full-featured: Supports horizontal and vertical screen playback, video split screen, rolling subtitles, timer switch, USB data import and other functions.
- Convenient management: Humanized playlist creation software for easy ad playback management and control. Playback log makes it easy to understand the playback status.
Young-feel android motherboard PCBA solutions are widely used in self-service equipment (medical terminal equipment, tax terminal equipment, self-service vending machines, etc.), smart cash register equipment, face recognition equipment, education all-in-one machine, live broadcast equipment, etc., and have leading customers in various equipment fields.
